Stainless steel water outlet top with arched
Stainless steel water outlet top with arched
Tabelle Gewindemaße

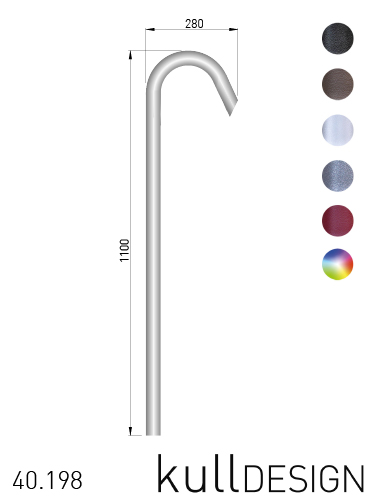

Art. No. 40.198

Fountain arch
4.2*28*110cm

Dimension: B: 4,2 H: 110,0 T: 28,0 cm    weight: 3.30kg

PriceSum
449,00
(377,31 € net)

Surface

Additional text

Quantity

Water Dispenser ø 42 mm stainless steel 28 x 110 cm.


1. Water tap with shut-off valve
Kull-Design offers valves with different handle options to choose from - a standard concealed 3/4 "external thread is installed at the front of the water outlet - this results in a straight and quiet water jet where a perlator or hose connection can be screwed in at any time - which also means filling of watering cans is advantageous. For the water connection at the bottom, a flexible armored hose with a 3/4 "union nut is installed, which protrudes below the bottom plate, which can be pushed up into the riser pipe during installation (if an additional water tap is attached to the riser at the bottom, it is difficult to push up the Flex hose or a fixed thread is installed!)
2. Select additional faucet
on the riser - specify desired height and orientation, finished.
3. Fountain elbow without shut-off valve
for sources or operation with a circulation pump, the output model is open at the front end of the bow and has a lively quaint water outlet. If attachments such as hose connection or aerator are required at the front of the spout, a threaded connection 45.217 can be installed. For the water connection below a fixed 3/4 "internal thread is installed.
4. Fastening
Wallmount - Floorplate - Ground socket to choose.
Everything is assembled and delivered as a complete part!
Assembly becomes super easy!
